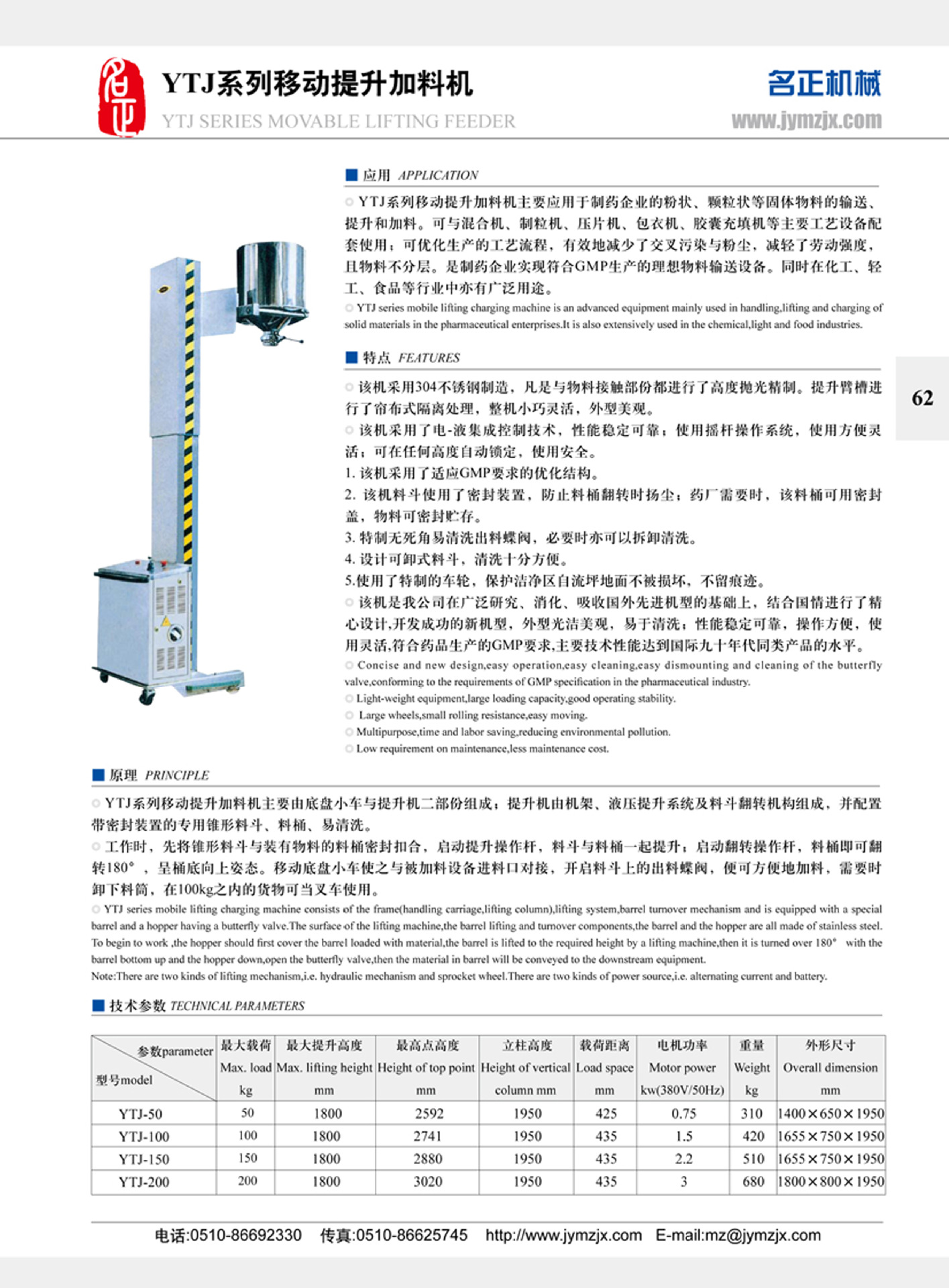

YTJ系列移动提升加料机
YTJ Series Movable Lifting Feeder
◎ 该机采用304不锈钢制造，凡是与物料接触部份都进行了高度抛光精制。提升臂槽进
行了帘布式隔离处理，整机小巧灵活，外型美观。
◎ 该机采用了电-液集成控制技术，性能稳定可靠；使用摇杆操作系统，使用方便灵
活；可在任何高度自动锁定，使用安全。
1. 该机采用了适应gMP要求的优化结构。
2. 该机料斗使用了密封装置，防止料桶翻转时扬尘；药厂需要时，该料桶可用密封
盖，物料可密封贮存。
3. 特制无死角易清洗出料蝶阀，必要时亦可以拆卸清洗。
4. 设计可卸式料斗，清洗十分方便。
5.使用了特制的车轮，保护洁净区自流坪地面不被损坏，不留痕迹。
◎ 该机是我公司在广泛研究、消化、吸收国外先进机型的基础上，结合国情进行了精
心设计,开发成功的新机型，外型光洁美观，易于清洗；性能稳定可靠，操作方便，使
用灵活,符合药品生产的gMP要求,主要技术性能达到国际九十年代同类产品的水平。
◎ Concise and new design,easy operation,easy cleaning,easy dismounting and cleaning of the butterfly
valve,conforming to the requirements of gMP specification in the pharmaceutical industry.
◎ light-weight equipment,large loading capacity,good operating stability.
◎ large wheels,small rolling resistance,easy moving.
◎ Multipurpose,time and labor saving,reducing environmental pollution.
◎ low requirement on maintenance,less maintenance cost.
◎ ytJ系列移动提升加料机主要应用于制药企业的粉状、颗粒状等固体物料的输送、
提升和加料。可与混合机、制粒机、压片机、包衣机、胶囊充填机等主要工艺设备配
套使用；可优化生产的工艺流程，有效地减少了交叉污染与粉尘，减轻了劳动强度，
且物料不分层。是制药企业实现符合gMP生产的理想物料输送设备。同时在化工、轻
工、食品等行业中亦有广泛用途。
◎ ytJ series mobile lifting charging machine is an advanced equipment mainly used in handling,lifting and charging of
solid materials in the pharmaceutical enterprises.It is also extensively used in the chemical,light and food industries.
◎ ytJ系列移动提升加料机主要由底盘小车与提升机二部份组成；提升机由机架、液压提升系统及料斗翻转机构组成，并配置
带密封装置的专用锥形料斗、料桶、易清洗。
◎ 工作时，先将锥形料斗与装有物料的料桶密封扣合，启动提升操作杆，料斗与料桶一起提升；启动翻转操作杆，料桶即可翻
转180°，呈桶底向上姿态。移动底盘小车使之与被加料设备进料口对接，开启料斗上的出料蝶阀，便可方便地加料，需要时
卸下料筒，在100kg之内的货物可当叉车使用。
◎ ytJ series mobile lifting charging machine consists of the frame(handling carriage,lifting column),lifting system,barrel turnover mechanism and is equipped with a special
barrel and a hopper having a butterfly valve.the surface of the lifting machine,the barrel lifting and turnover components,the barrel and the hopper are all made of stainless steel.
to begin to work ,the hopper should first cover the barrel loaded with material,the barrel is lifted to the required height by a lifting machine,then it is turned over 180° with the
barrel bottom up and the hopper down,open the butterfly valve,then the material in barrel will be conveyed to the downstream equipment.
Note:there are two kinds of lifting mechanism,i.e. hydraulic mechanism and sprocket wheel.there are two kinds of power source,i.e. alternating current and battery.
