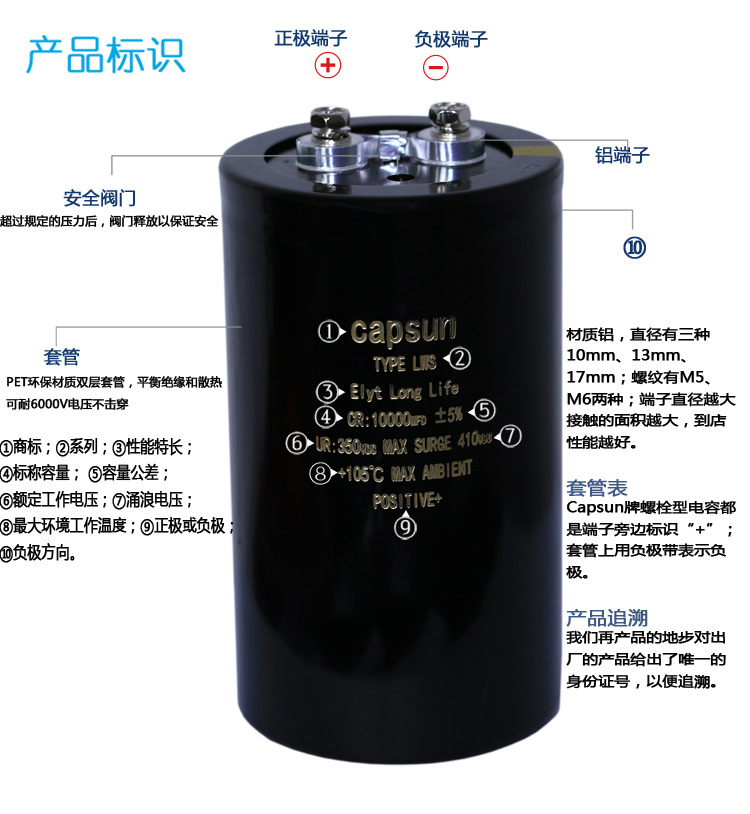

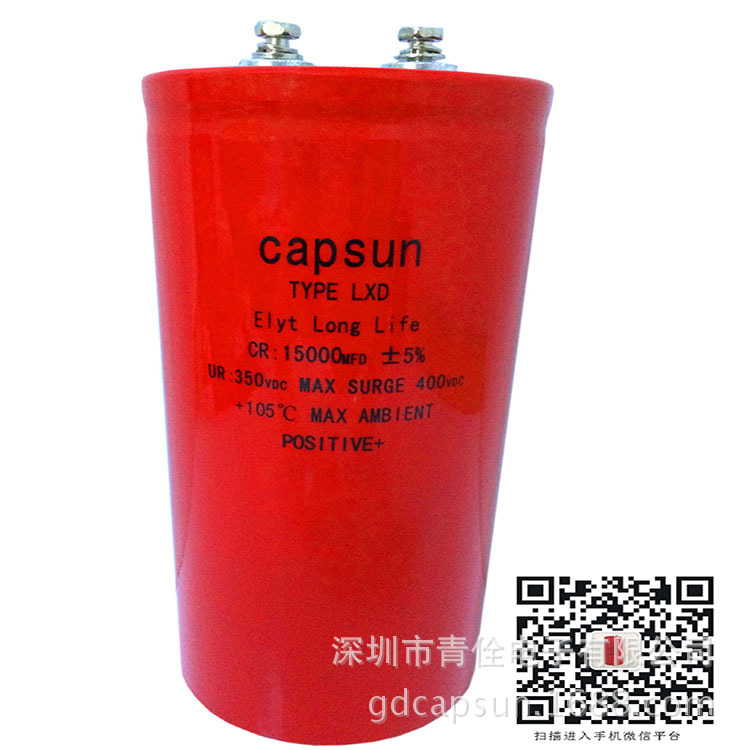

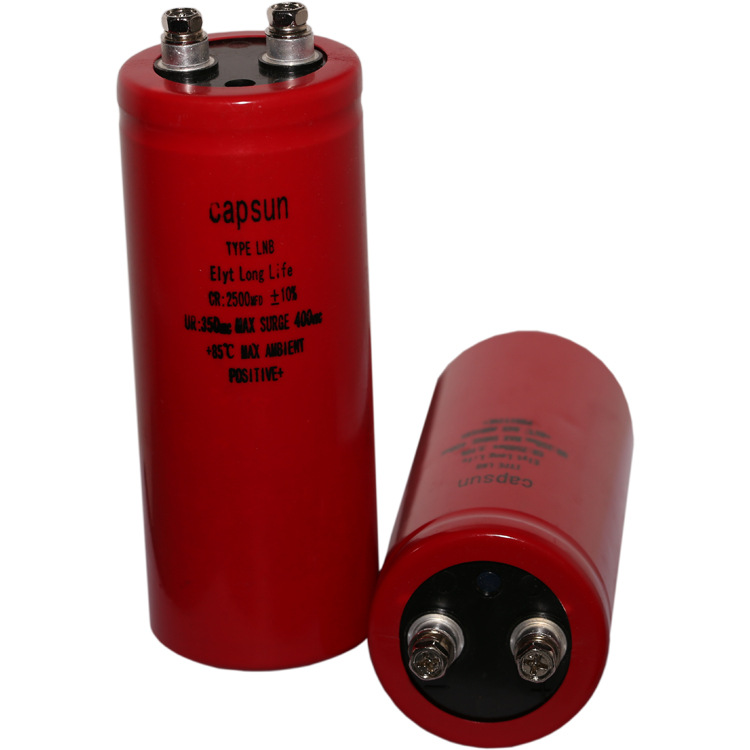

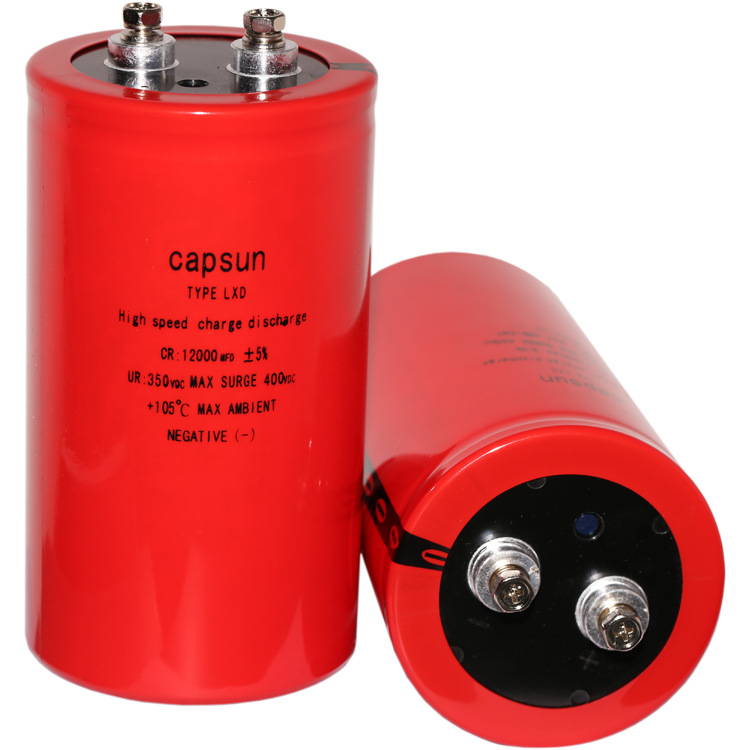

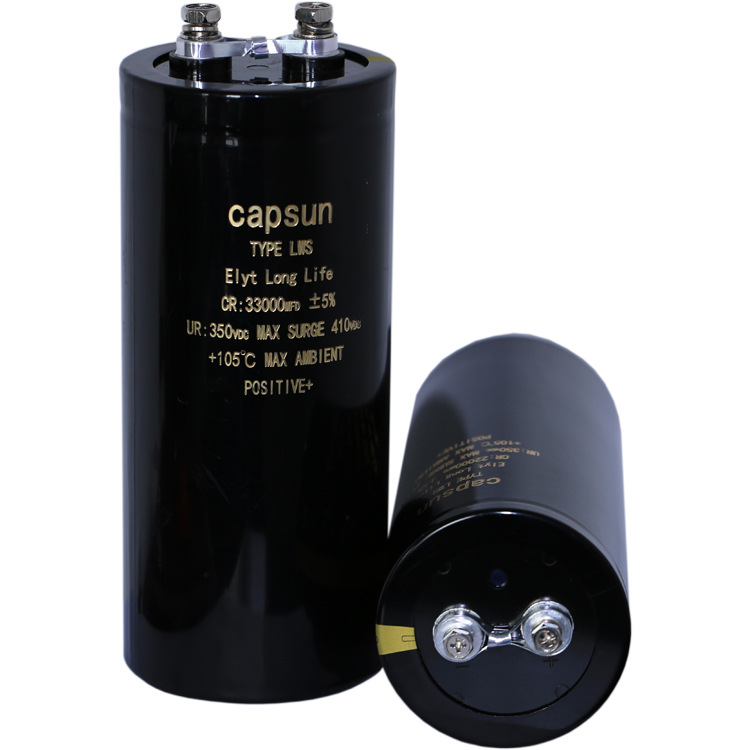

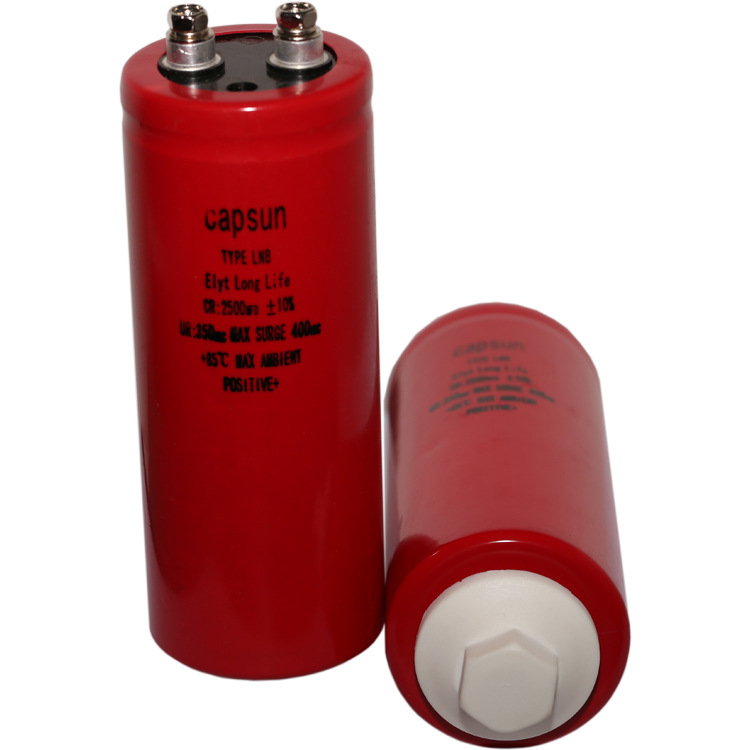

专业制造990UF350v耦合电解电容编带机,grp电解电容
产品电压：350V
产品容量：990μF
产品尺寸：50*55
产品使用温度：105度
产品使用寿命：8000小时
等效串联电阻值100Hz,20℃[mΩ] 额定纹波电流（Ams/105℃,100Hz）A
220UF350V 35*40 等效串联电阻值100Hz,20℃605.4mΩ额定纹波电流1.2Ams/105℃,100Hz
430UF350V 35*55 等效串联电阻值100Hz,20℃378.5mΩ额定纹波电流1.6Ams/105℃,100Hz
510UF350V 35*65 等效串联电阻值100Hz,20℃253.0mΩ额定纹波电流2.1Ams/105℃,100Hz
680UF350V 35*80 等效串联电阻值100Hz,20℃190.2mΩ额定纹波电流2.6Ams/105℃,100Hz
760UF350V 35*55 等效串联电阻值100Hz,20℃176.6mΩ额定纹波电流2.9Ams/105℃,100Hz
860UF350V 35*90 等效串联电阻值100Hz,20℃152.5mΩ额定纹波电流3.2Ams/105℃,100Hz
920UF350V 35*65 等效串联电阻值100Hz,20℃161.7mΩ额定纹波电流3.3Ams/105℃,100Hz
990UF350V 50*55 等效串联电阻值100Hz,20℃167.6mΩ额定纹波电流3.3Ams/105℃,100Hz
1000UF350V 35*105 等效串联电阻值100Hz,20℃127.5mΩ额定纹波电流4.0Ams/105℃,100Hz
1200UF350V 35*115 等效串联电阻值100Hz,20℃109.6mΩ额定纹波电流3.5Ams/105℃,100Hz
1200UF350V 35*80 等效串联电阻值100Hz,20℃124.7mΩ额定纹波电流3.5Ams/105℃,100Hz
1200UF350V 50*65 等效串联电阻值100Hz,20℃132.2mΩ额定纹波电流3.6Ams/105℃,100Hz
1300UF350V 35*130 等效串联电阻值100Hz,20℃97.2mΩ额定纹波电流4.5Ams/105℃,100Hz
1500UF350V 35*140 等效串联电阻值100Hz,20℃85.9mΩ额定纹波电流5.0Ams/105℃,100Hz
1500UF350V 35*90 等效串联电阻值100Hz,20℃97.3mΩ额定纹波电流4.9Ams/105℃,100Hz
1500UF350V 50*80 等效串联电阻值100Hz,20℃101.5mΩ额定纹波电流4.9Ams/105℃,100Hz
1800UF350V 35*105 等效串联电阻值100Hz,20℃79.9mΩ额定纹波电流5.8Ams/105℃,100Hz
1900UF350V 50*90 等效串联电阻值100Hz,20℃79.2mΩ额定纹波电流4.4Ams/105℃,100Hz
2000UF350V 65*65 等效串联电阻值100Hz,20℃86.9mΩ额定纹波电流4.6Ams/105℃,100Hz
2100UF350V 35*115 等效串联电阻值100Hz,20℃67.8mΩ额定纹波电流5.5Ams/105℃,100Hz
2300UF350V 50*105 等效串联电阻值100Hz,20℃65.1mΩ额定纹波电流5.9Ams/105℃,100Hz
2400UF350V 35*130 等效串联电阻值100Hz,20℃59.1mΩ额定纹波电流6.5Ams/105℃,100Hz
2500UF350V 65*80 等效串联电阻值100Hz,20℃61.0mΩ额定纹波电流6.6Ams/105℃,100Hz
2700UF350V 35*140 等效串联电阻值100Hz,20℃52.4mΩ额定纹波电流7.4Ams/105℃,100Hz
2700UF350V 50*115 等效串联电阻值100Hz,20℃55.4mΩ额定纹波电流7.5Ams/105℃,100Hz
3100UF350V 50*130 等效串联电阻值100Hz,20℃48.7mΩ额定纹波电流7.0Ams/105℃,100Hz
3100UF350V 65*90 等效串联电阻值100Hz,20℃48.5mΩ额定纹波电流7.5Ams/105℃,100Hz
3500UF350V 50*140 等效串联电阻值100Hz,20℃42.8mΩ额定纹波电流8.3Ams/105℃,100Hz
3700UF350V 65*105 等效串联电阻值100Hz,20℃39.9mΩ额定纹波电流9.0Ams/105℃,100Hz
3800UF350V 76*80 等效串联电阻值100Hz,20℃54.0mΩ额定纹波电流8.1Ams/105℃,100Hz
4200UF350V 65*115 等效串联电阻值100Hz,20℃34.0mΩ额定纹波电流10.5Ams/105℃,100Hz
4600UF350V 76*90 等效串联电阻值100Hz,20℃41.7mΩ额定纹波电流9.8Ams/105℃,100Hz
4800UF350V 65*130 等效串联电阻值100Hz,20℃29.6mΩ额定纹波电流10.7Ams/105℃,100Hz
5400UF350V 65*140 等效串联电阻值100Hz,20℃26.2mΩ额定纹波电流11.9Ams/105℃,100Hz
5500UF350V 76*105 等效串联电阻值100Hz,20℃34.7mΩ额定纹波电流10.8Ams/105℃,100Hz
6300UF350V 76*115 等效串联电阻值100Hz,20℃29.6mΩ额定纹波电流12.2Ams/105℃,100Hz
7200UF350V 76*130 等效串联电阻值100Hz,20℃25.8mΩ额定纹波电流13.4Ams/105℃,100Hz
7700UF350V 89*105 等效串联电阻值100Hz,20℃29.9mΩ额定纹波电流12.8Ams/105℃,100Hz
8200UF350V 76*140 等效串联电阻值100Hz,20℃22.9mΩ额定纹波电流14.9Ams/105℃,100Hz
8400UF350V 76*146 等效串联电阻值100Hz,20℃21.7mΩ额定纹波电流17.2Ams/105℃,100Hz
8800UF350V 89*115 等效串联电阻值100Hz,20℃25.7mΩ额定纹波电流13.8Ams/105℃,100Hz
10000UF350V 89*130 等效串联电阻值100Hz,20℃22.5mΩ额定纹波电流15.3Ams/105℃,100Hz
11000UF350V 76*192 等效串联电阻值100Hz,20℃17.1mΩ额定纹波电流19.1Ams/105℃,100Hz
11000UF350V 89*140 等效串联电阻值100Hz,20℃20.0mΩ额定纹波电流16.7Ams/105℃,100Hz
12000UF350V 89*146 等效串联电阻值100Hz,20℃18.9mΩ额定纹波电流17.7Ams/105℃,100Hz
13000UF350V 76*218 等效串联电阻值100Hz,20℃14.2mΩ额定纹波电流20.7Ams/105℃,100Hz
16000UF350V 89*192 等效串联电阻值100Hz,20℃14.9mΩ额定纹波电流22.3Ams/105℃,100Hz
18000UF350V 89*218 等效串联电阻值100Hz,20℃12.4mΩ额定纹波电流24.8Ams/105℃,100Hz
